NRS NRS Swivel and Plates for Padded Raft Seats

SKU: NRS-94038.01.100
$44.95
Excl. tax

Keep your head and chair on a swivel when out on the water. You never know what side of the boat the next big catch will come from. The NRS Swivel plate works great and is easy to install

The rating of this product is 0 out of 5

(0)
In stock (Delivery timeframe:5-7 Business Days)

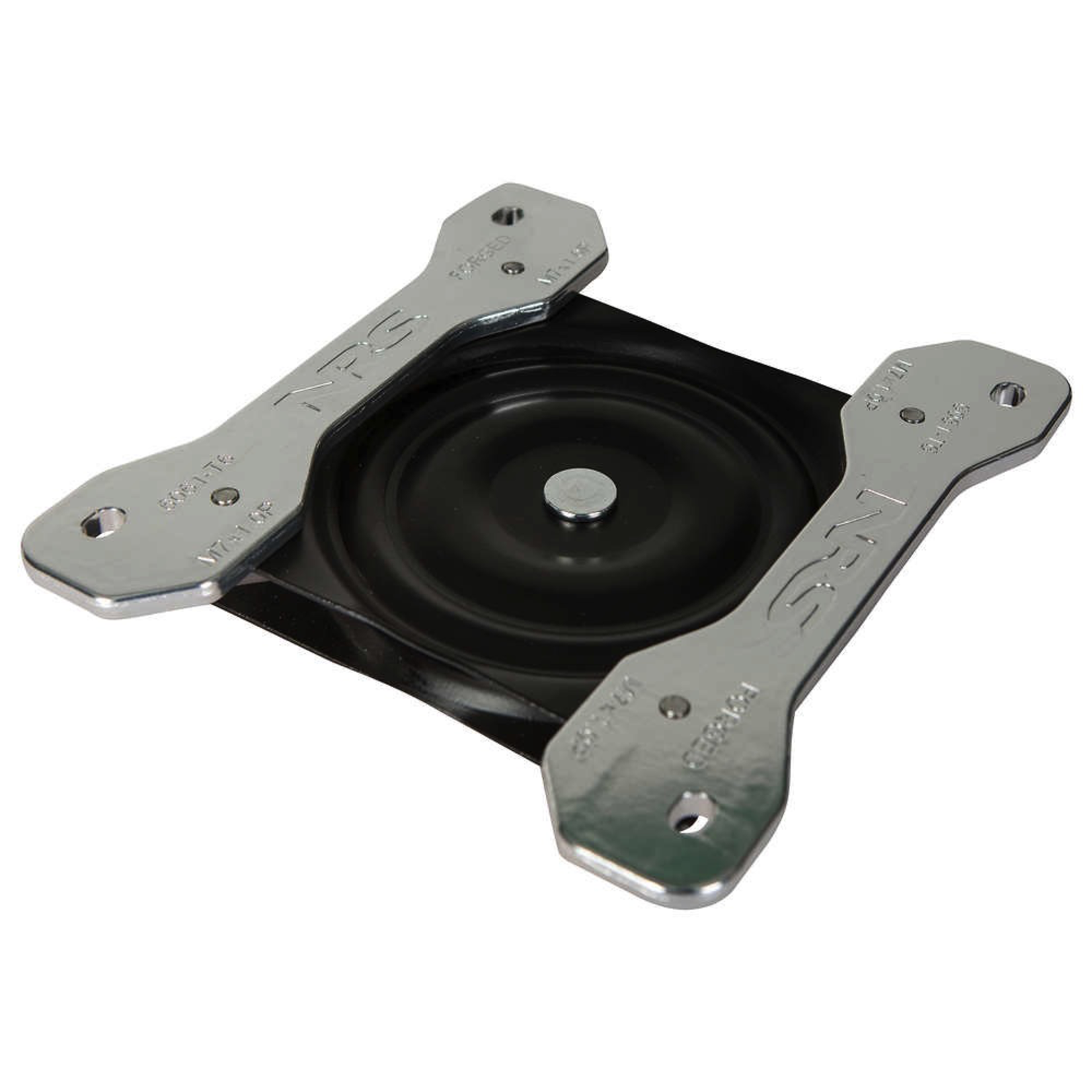

With the NRS Swivel and Plates you can turn any NRS Padded Raft Seat into a swivel seat! Bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount.
  • The unit consists of a swivel base that allows the seat to rotate 360 degrees, and two hot-forged aluminum plates that are bolted to it.
  • The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Use the bolts you have with your seat to attach it to the aluminum plates.
  • All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the 5.25" x 5.25" pattern for the swivel.
  • If you have an older seat bar that doesn't have those holes, just drill four 1/4" holes in that 5.25" x 5.25" pattern.
  • The unit comes with mounting hardware: 4 each 1/4"-20 x 1" bolts and lock nuts, and 8 flat washers.
  • The Universal Seat Mount, Item # 94015.01, has both the 7" x 7.5" and 5.25" x 5.25" hole patterns. It can be used for mounting your swivel seat anywhere on the 1 5/8" frame pipe.



Specs

Dimensions:
  • Seat plate measurements - 8.25" x 9.25"
  • Swivel plate measurements - 6.25" x 6.25"
  • Seat plate bolt hole pattern - 7" x 7.5"
  • Swivel plate bolt hole pattern - 5.25" x 5.25"
Category:
  • Frame Accessories
Weight: 3.125 lbs.
Swivel and Plates for Padded Raft Seats
A B C D E F
9 1/4" 8 1/4" 7 1/2" 7" 6 3/8" 4 3/4" - 5 1/2"
